Vertical Multi-Face Grinder (Shoe Centerless Type) TVG-40S

The TVG series now includes a shoe centerless type that is ideal for machining bearings with a maximum inner diameter of φ400mm.

Main Specifications

Grindable workpiece O.D. φmm 〜440
Grindable workpiece width mm 〜300
Dimensions (Width×Depth×Height) mm 2,300×2,450×2,900

Please refer to the catalog for more details.

Catalog Download Request for quotation

Main Features

One-chuck composite grinding
NC shoe offset switching device enables one-chuck composite grinding of inner and outer diameters, and end faces. It also reduces shoe offset work.

Stable high-precision machining
The structure minimizes thermal deformation due to the motor and grinding heat. Higher tracking of cutting and similar features provide stable high-precision machining.

Suitable for unmanned and labor-saving operations
ATC unit enables optimal replacement of grinding wheels. Equipped with an automatic conveyor robot capable of automatically changing grindable part to provide suitability for unmanned and labor-saving operations.

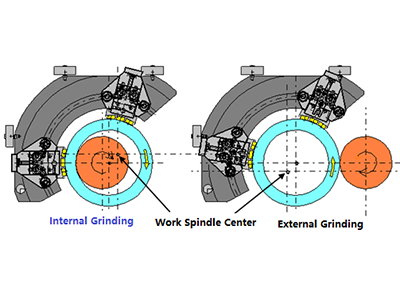

NC shoe offset switching device

NC turret provides grinding of O.D. and Rib faces



Automatic material handling by robot

Supports various transport formats (supports unmanned and labor-saving)

Please refer to the catalog for more details.
